IC51 (Clamshell)SOP, TSOP Type I & II |
|
| Specifications |
|
| Insulation Resistance: |
1,000MΩ min. at 500V DC |
| Dielectric Withstanding Voltage: |
700V AC for 1 minute |
| Contact Resistance: |
30mΩ max. at 10mA/20mV max. |
| Operating Temperature Range: |
–40°C to +150°C (for type PSF)
–55°C to +170°C (for type PES & PEI)
10,000 insertions min. |
| |
|
Materials and Finish
Housing:Polyetherimide (PEI), glass-fi lled
Contacts:Beryllium Copper (BeCu)
Plating:Gold over Nickel |
|
|
| |
|
0.5 to 1.27mm Pitch |

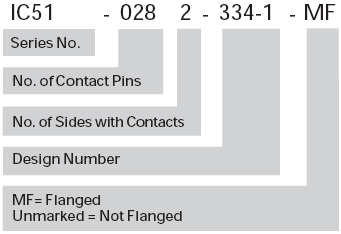

Part Number (Details)
|
 |
| |
产品型号 |
封装类型 |
引脚数量 |
间距 |
生产厂家 |
IC51-0242-1006-1 |
TSOP |
24 |
0.5 |
YAMAICHI |
IC51-0282-1032-1 |
TSOP |
28 |
0.5 |
YAMAICHI |
IC51-0322-1031-1 |
TSOP |
32 |
0.5 |
YAMAICHI |
IC51-0322-883-1 |
TSOP |
32 |
0.5 |
YAMAICHI |
IC51-0322-1219 |
TSOP |
32 |
0.5 |
YAMAICHI |
IC51-0322-1207-1 |
TSOP |
32 |
0.5 |
YAMAICHI |
IC51-0402-1557 |
TSOP |
40 |
0.5 |
YAMAICHI |
IC51-0402-1174-1 |
TSOP |
40 |
0.5 |
YAMAICHI |
IC51-0482-1099 |
TSOP |
48 |
0.5 |
YAMAICHI |
IC51-0482-2018 |
TSOP |
48 |
0.5 |
YAMAICHI |
IC51-0262-1339 |
TSOP |
26 |
1.27 |
YAMAICHI |
IC51-0442-1709 |
TSOP |
44 |
0.8 |
YAMAICHI |
IC51-0502-1708 |
TSOP |
50 |
0.8 |
YAMAICHI |
IC51-778.AS-8409 |
SSOP |
14 |
0.65 |
YAMAICHI |
IC51-0162-911 |
SSOP |
16 |
0.65 |
YAMAICHI |
IC51-0162-778 |
SSOP |
16 |
0.65 |
YAMAICHI |
IC51-755.KS-7514 |
SSOP |
16 |
0.65 |
YAMAICHI |
IC51-0202-779 |
SSOP |
20 |
0.65 |
YAMAICHI |
IC51-755.KS-7631 |
SSOP |
20 |
0.65 |
YAMAICHI |
IC51-0242-913 |
SSOP |
24 |
0.65 |
YAMAICHI |
IC51-0242-761 |
SSOP |
24 |
0.65 |
YAMAICHI |
IC51-0282-673-1 |
SSOP |
28 |
0.65 |
YAMAICHI |
IC51-755.KS-13330 |
SSOP |
28 |
0.65 |
YAMAICHI |
IC51-0302-914 |
SSOP |
30 |
0.65 |
YAMAICHI |
IC51-0302-755 |
SSOP |
30 |
0.65 |
YAMAICHI |
IC51-0322-910 |
SSOP |
32 |
0.65 |
YAMAICHI |
IC51-1387.KS-15186 |
SSOP |
48 |
0.635 |
YAMAICHI |
IC51-0562-1387 |
SSOP |
56 |
0.635 |
YAMAICHI |
IC51-0722-1955-1 |
SSOP |
72 |
0.65 |
YAMAICHI |
IC51-0082-1024 |
SOP |
8 |
1.27 |
YAMAICHI |
IC51-1035.KS-10460 |
SOP |
8 |
1.27 |
YAMAICHI |
IC51-0122-1836 |
SOP |
12 |
0.8 |
YAMAICHI |
IC51-0142-951 |
SOP |
14 |
1.25 |
YAMAICHI |
IC51-0142-084 |
SOP |
14 |
1.27 |
YAMAICHI |
IC51-0142-1013 |
SOP |
14 |
1.27 |
YAMAICHI |
IC51-1035.KS-15187 |
SOP |
14 |
1.27 |
YAMAICHI |
IC51-0162-1035 |
SOP |
16 |
1.27 |
YAMAICHI |
IC51-0162-1042 |
SOP |
16 |
1.27 |
YAMAICHI |
IC51-0162-658 |
SOP |
16 |
1.27 |
YAMAICHI |
IC51-0162-271-3 |
SOP |
16 |
1.27 |
YAMAICHI |
IC51-0162-271-2 |
SOP |
16 |
1.27 |
YAMAICHI |
IC51-0162-271-1 |
SOP |
16 |
1.27 |
YAMAICHI |
IC51-0162-272-1 |
SOP |
16 |
1.27 |
YAMAICHI |
IC51-0162-273-1 |
SOP |
16 |
1.27 |
YAMAICHI |
IC51-0162-1025 |
SOP |
16 |
1.27 |
YAMAICHI |
IC51-0162-902-2 |
SOP |
16 |
1.27 |
YAMAICHI |
IC51-347.KS-7704 |
SOP |
16 |
1.27 |
YAMAICHI |
IC51-347.KS-6768 |
SOP |
18 |
1.27 |
YAMAICHI |
IC51-347.KS-13574 |
SOP |
20 |
1.27 |
YAMAICHI |
IC51-0202-714 |
SOP |
20 |
1.27 |
YAMAICHI |
IC51-0202-347 |
SOP |
20 |
1.27 |
YAMAICHI |
IC51-0202-932-1 |
SOP |
20 |
1.27 |
YAMAICHI |
IC51-0202-1026 |
SOP |
20 |
1.27 |
YAMAICHI |
IC51-0222-803 |
SOP |
22 |
1.27 |
YAMAICHI |
IC51-0242-308 |
SOP |
24 |
0.8 |
YAMAICHI |
IC51-0242-577 |
SOP |
24 |
0.8 |
YAMAICHI |
IC51-0242-310-1 |
SOP |
24 |
1 |
YAMAICHI |
IC51-0242-303-1 |
SOP |
24 |
1.27 |
YAMAICHI |
IC51-0242-303-3 |
SOP |
24 |
1.27 |
YAMAICHI |
IC51-334-1.KS-6411 |
SOP |
24 |
1.27 |
YAMAICHI |
IC51-0242-793 |
SOP |
24 |
1.27 |
YAMAICHI |
IC51-0242-367-1 |
SOP |
24 |
1.27 |
YAMAICHI |
IC51-0242-980 |
SOP |
24 |
1.27 |
YAMAICHI |
IC51-778.AS-8409 |
SSOP |
14 |
0.65 |
YAMAICHI |
IC51-0162-911 |
SSOP |
16 |
0.65 |
YAMAICHI |
IC51-0162-778 |
SSOP |
16 |
0.65 |
YAMAICHI |
IC51-755.KS-7631 |
SSOP |
16 |
0.65 |
YAMAICHI |
IC51-0202-779 |
SSOP |
20 |
0.65 |
YAMAICHI |
IC51-0202-912 |
SSOP |
20 |
0.65 |
YAMAICHI |
IC51-755.KS-7631 |
SSOP |
20 |
0.65 |
YAMAICHI |
IC51-0242-913 |
SSOP |
24 |
0.65 |
YAMAICHI |
IC51-0242-761 |
SSOP |
24 |
065 |
YAMAICHI |
IC51-0282-673-1 |
SSOP |
28 |
0.65 |
YAMAICHI |
IC51-755.KS-13330 |
SSOP |
28 |
0.65 |
YAMAICHI |
IC51-0302-914 |
SSOP |
30 |
0.65 |
YAMAICHI |
IC51-0302-755 |
SSOP |
30 |
0.65 |
YAMAICHI |
IC51-0322-910 |
SSOP |
32 |
0.6 |
YAMAICHI |
IC51-1387.KS-15186 |
SSOP |
48 |
0.635 |
YAMAICHI |
IC51-0562-1387 |
SSOP |
56 |
0.65 |
YAMAICHI |
IC51-0722-1955-1 |
SSOP |
72 |
0.65 |
YAMAICHI |
IC51-0342-741 |
SOP |
34 |
1 |
YAMAICHI |
IC51-0362-309 |
SOP |
36 |
0.8 |
YAMAICHI |
IC51-0402-708 |
SOP |
40 |
0.8 |
YAMAICHI |
IC51-0402-1197 |
SOP |
40 |
1.27 |
YAMAICHI |
IC51-0402-991 |
SOP |
40 |
1.27 |
YAMAICHI |
IC51-0422-393 |
SOP |
42 |
0.8 |
YAMAICHI |
IC51-0442-1208 |
SOP |
44 |
1.27 |
YAMAICHI |
IC51-0442-1315 |
SOP |
44 |
1.27 |
YAMAICHI |
IC51-0442-1536 |
SOP |
44 |
1.27 |
YAMAICHI |
IC51-0482-1009-2 |
SOP |
48 |
0.8 |
YAMAICHI |
IC51-0562-2144 |
SOP |
56 |
0.8 |
YAMAICHI |
|
| |
|
| |
|
