YAMAICHI SOJ封装IC测试座/老化座/插座 IC Test and Burn-In Socke |
| Specifications |
Part Number (Details) |
Insulation Resistance:1,000M min. at 500V DC
Dielectric Withstanding Voltage:700V AC for 1 minute
Contact Resistance:30m max. at 10mA/20mV max
Current Rating:1A max.
Operating Temperature Range:–55°C to +170°C
Mating Cycles:10,000 insertions min. |
|
| Materials and Finish |
Housing:Polyetherimide (PEI), glass-filled
Contacts:Beryllium Copper (BeCu)
Plating:Gold over Nickel
|
| Features |
|
For inserting SOJ packages in dead-bug orientation
The larger contact area and two-point contact design ensures
high contact reliability
Outstanding durability with low insertion-withdrawal forces
Guides for automated operation |
|

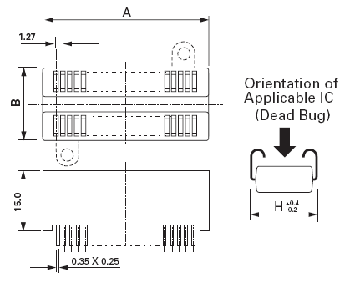

| Outline Socket Dimensions |

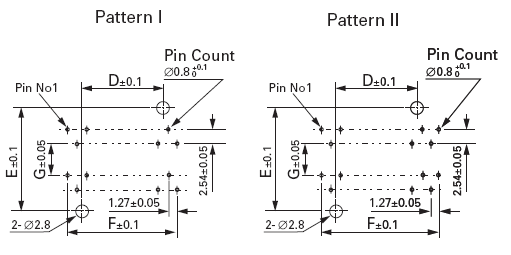

Recommended PC Board Layout |
 |
|
| |
| Flange not available |

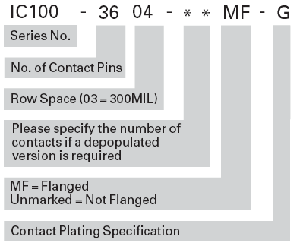

| Part Number |
Row
Spacing |
Pin
Count |
Socket Dim. |
PCB Dimensions |
IC Dim. |
| A |
B |
D |
E |
F |
G |
Pattern |
H |
| IC100-2003-**xx-G |
300 |
20 |
16.2 |
15.6 |
9.0 |
21.6 |
1.27 x 9 = 11.43 |
6.86 |
II |
8.4 |
| IC100-2403-**-G |
300 |
24 |
18.8 |
15.6 |
11.0 |
21.6 |
1.27 x 11 = 13.97 |
6.86 |
I |
8.4 |
| IC100-2603-20-G |
300 |
20 |
20.1 |
15.6 |
13.0 |
21.6 |
1.27 x 12 = 15.24 |
6.86 |
II |
8.4 |
| IC100-2603-**-G |
300 |
26 |
20.1 |
15.6 |
13.0 |
21.6 |
1.27 x 12 = 15.24 |
6.86 |
II |
8.4 |
| IC100-2803-24-G |
300 |
24 |
21.4 |
15.6 |
14.2 |
21.6 |
1.27 x 13 = 16.51 |
6.86 |
I |
8.4 |
| IC100-2803-**-G |
300 |
28 |
21.4 |
15.6 |
14.2 |
21.6 |
1.27 x 13 = 16.51 |
6.86 |
I |
8.4 |
| IC100-3203-**xx-G |
300 |
32 |
24.0 |
15.6 |
14.2 |
21.6 |
1.27 x 15 = 19.05 |
6.86 |
I |
8.4 |
| IC100-2804-**xx-G |
400 |
28 |
21.4 |
15.6 |
14.2 |
24.1 |
1.27 x 13 = 16.51 |
9.4 |
I |
10.9 |
| IC100-3204-**-G |
400 |
32 |
24.0 |
18.0 |
14.2 |
24.1 |
1.27 x 15 = 19.05 |
9.4 |
I |
10.9 |
| IC100-3604-**xx-G |
400 |
36 |
26.5 |
18.0 |
18.5 |
24.1 |
1.27 x 17 = 21.59 |
9.4 |
I |
10.9 |
| IC100-4004-**xx-G |
400 |
40 |
29.0 |
18.0 |
14.2 |
24.1 |
1.27 x 19 = 24.13 |
9.4 |
I |
10.9 |
| IC100-4204-**xx-G |
400 |
42 |
30.3 |
18.0 |
20.0 |
24.1 |
1.27 x 20 = 25.40 |
9.4 |
II |
10.9 |
| IC100-4404-**xx-G |
400 |
44 |
31.6 |
18.0 |
21.6 |
24.1 |
1.27 x 21 = 26.67 |
9.4 |
I |
10.9 |
| IC100-3605-**xx-G |
500 |
36 |
26.5 |
20.7 |
18.5 |
26.7 |
1.27 x 17 = 21.59 |
11.94 |
I |
13.5 |
|
| |
