YAMAICHI BGA封装测试座/老化座BGA Test &Burn-in socket

Specifications

Insulation Resistance:  1,000MW min. at  500V DC
Dielectric Withstanding Voltage: 700V AC for 1 minute for 1.00mm pitch
                                                           500V AC for 1 minute for 0.80mm pitch
                                                           100V AC for 1 minute for 0.75mm pitch
Contact Resistance:   100mW max. at 10mA/20mV max.
Operating Temperature Range:  –40°C to +150°C
Contact Force: 15g~35g per pin within contact traveldistance between0.2~0.5mm
Mating Cycles: 10,000 insertions

Materials and Finish
Housing: Polyethersulphone (PES), glass-filled and Polyetherimide(PEI),glass-filled
Contacts: Beryllium Copper (BeCu)
Plating: Gold over Nickel

Features
V-shape contact structure to lower the damage of coplanarity of solder balls
Available in 3 pitch sizes and various depopulation versions, please contact Yamaichi for further available pin counts or custom sockets

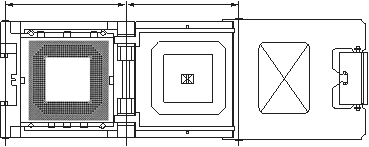

Socket Side Views
BGA
Socket Side Views bga GBA

Part Number (Details)

BGA封装测试座/老化座

Series No

No. of Contact Pins

Design Number

For Pin Depopulation
and Custom Designed Sockets
Contact Details for BGA
bga

Contact Details for LGA
BGA

Part Number	ParCount	Pitch	GridSize	IC Body Size	Socket Dimensions			Lid Type	IC Dim./ PCB's (see page)
Part Number	ParCount	Pitch	GridSize	IC Body Size	A	B	C	Lid Type	IC Dim./ PCB's (see page)
IC280-169-127	169	0.80	13 x 13	12 x 12	28.40	31.35	-	CS	-
IC280-196-126	196	0.80	14 x 14	12 x 12	28.40	31.35	-	CS	-
IC280-72919.AC-12414	209	0.80	19 x 19	23 x 23	41.20	40.20	36.65	DL	-
IC280-225-185	225	0.75	15 x 15	12 x 12	28.40	31.35	31.50	CS	D-59
IC280-256-211	256	0.80	16 x 16	13 x 13	38.80	45.25	36.65	DL	D-59
IC280-72919.AC-12413	257	0.80	19 x 19	23 x 23	41.20	40.20	36.65	DL	-
IC280-324-186	324	0.80	18 x18	16 x 16	31.60	34.55	-	CS	D-59
IC280-72919.AC-10478	340	0.80	22 x 22	20 x 20	41.20	40.20	36.65	DL	-
IC280-72918.AC-11321	484	1.00	22 x 22	23 x 23	46.80	47.60	43.00	DL	-
IC280-57606	576	1.00	33 x 33	35 x 35	56.20	54.90	50.90	DL	D-62
IC280-69605.AC-08327	671	1.00	34 x 34	35 x 35	56.20	54.90	50.90	DL	-
IC280-69605	696	1.00	38 x 38	40 x 40	56.20	54.90	50.90	DL	D-62
IC280-720-106	720	1.00	38 x 38	40 x 40	56.20	54.90	50.90	DL	-
IC280-72919	729	0.80	27 x 27	23 x 23	42.20	40.20	36.65	DL	D-60
IC280-72949	729	0.80	27 x 27	23 x 23	38.80	45.25	-	CS	D-60
IC280-72918	729	1.00	27 x 27	28 x 28	38.80	47.60	43.00	DL	D-61
IC280-72948	729	1.00	27 x 27	28 x 28	44.00	51.20	-	CS	D-61
IC280-740-111	740	1.00	38 x 38	40 x 40	56.20	54.90	50.90	DL	-
IC280-868-108	868	1.00	38 x 38	40 x 40	54.90	50.90	50.90	DL
