NP352 Series (Open Top) Fine Ball Grid Array (FBGA, 1.00mm Pitch) |
| Specifications |

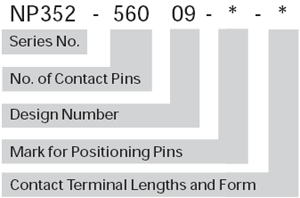

Part Number (Details) |
Insulation Resistance:1,000MΩ min. at 100V DC
Dielectric Withstanding Voltage:100V AC for 1 minute
Contact Resistance:100mΩ max. at 10mA/20mV max.
Operating Temperature Range:–40°C to +150°C / -55°C to +150°C
Contact Force:15g per pin approx.
Mating Cycles:10,000 insertions minimun |
Open top type sockets with "Tweezer Style Contacts"
For FBGA packages
Secure package alignment due to self contacting structure
without upper pressing force (ZIF)
Contacting structure to nip the sides of solder balls to lower
damages of coplanarity of solder balls |
| Materials and Finish |
Housing:Polyetherimide (PEI), glass-filled
Polyethersulphone (PES), glass-filled
Contacts:Beryllium Copper (BeCu)
Plating:Gold over Nickel
  |
| |

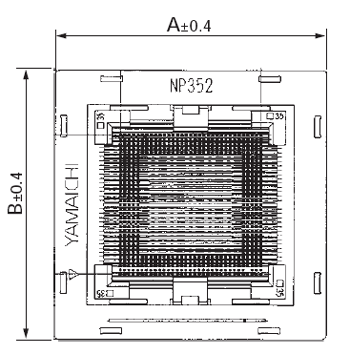

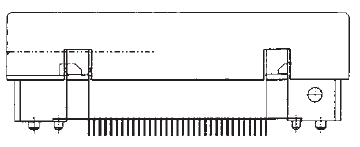

Outline Base Socket Dimensions |
|
| |
 |
 |
| |
|
| |
|
Yamaichi's 2-point Tweezer Contact |
|
|
Since the solder balls are touchedby two contacts on
each side,the solder ball damage can beminimized;
additional features are low actuation force and compact
socket size |
| |
|
产品型号 |
|
|
Base Socket
Dimensions A x B
|
|
|
|
|
NP352-04808 |
48 |
6 x 8 |
10 x 11 |
24.4 x 28.0 |
Page 3 |
fbga |
NP352-04811 |
48 |
6 x 8 |
10 x 14 |
24.4 x 28.0 |
Page 3 |
fbga |
NP352-04813 |
48 |
6 x 8 |
11 x 14 |
24.4 x 28.0 |
Page 3 |
fbga |
NP352-256-81-* |
256 |
16 x 16 |
17 x 17 |
39.0 x 39.0 |
Page 3 |
fbga |
NP352-34534 |
345 |
21 x 21 |
23 x 23 |
62.0 x 62.0 |
Page 3 |
fbga |
NP352-103 AC-29401 |
352 |
26 x 26 |
27 x 27 |
47.0 x 47.0 |
Page 3 |
fbga |
NP352-56009 AC-19416 |
360 |
33 x 33 |
35 x 35 |
62.0 x 62.0 |
Page 5 |
fbga |
NP352-66 AC-29556 |
388 |
26 x 26 |
27 x 27 |
62.0 x 62.0 |
Page 3 |
fbga |
NP352-40025 |
400 |
29 x 29 |
31 x 31 |
62.0 x 62.0 |
Page 4 |
fbga |
NP352-400-40 |
400 |
25 x 25 |
27 x 27 |
62.0 x 62.0 |
Page 3 |
fbga |
NP352-432-44 |
432 |
25 x 25 |
27 x 27 |
62.0 x 62.0 |
Page 3 |
fbga |
NP352-436-68 |
436 |
33 x 33 |
35 x 35 |
62.0 x 62.0 |
Page 5 |
fbga |
NP352-48031 AC-21938 |
468 |
29 x 29 |
31 x 31 |
62.0 x 62.0 |
Page 4 |
fbga |
NP352-456-66 |
456 |
26 x 26 |
27 x 27 |
62.0 x 62.0 |
Page 3 |
fbga |
NP352-48031 |
480 |
29 x 29 |
31 x 31 |
62.0 x 62.0 |
Page 4 |
fbga |
NP352-484-87-*-* |
484 |
26 x 26 |
31 x 31 |
47.0 x 47.0 |
Page 4 |
fbga |
NP352-484-98 |
484 |
22 x 22 |
23 x 23 |
62.0 x 62.0 |
Page 3 |
fbga |
NP352-152124 AC-21918 |
513 |
39 x 39 |
40 x 40 |
62.0 x 62.0 |
Page 7 |
fbga |
NP352-55212 |
552 |
29 x 29 |
31 x 31 |
62.0 x 62.0 |
Page 4 |
fbga |
NP352-56009 |
560 |
33 x 33 |
35 x 35 |
62.0 x 62.0 |
Page 5 |
fbga |
NP352-56009 AC-24855 |
560 |
33 x 33 |
35 x 35 |
62.0 x 62.0 |
Page 5 |
fbga |
NP352-64819 |
648 |
33 x 33 |
35 x 35 |
62.0 x 62.0 |
Page 5 |
fbga |
NP352-78832 AC-19367 |
660 |
38 x 38 |
40 x 40 |
62.0 x 62.0 |
Page 5 |
fbga |
NP352-676-103 |
676 |
26 x 26 |
27 x 27 |
47.0 x 47.0 |
Page 4 |
fbga |
NP352-1206-38AC-28934 |
677 |
36 x 36 |
37.5 x 37.5 |
55.8 x 55.8 |
Page 6 |
fbga |
NP352-115523.AC-22615 |
680 |
34 x 34 |
35 x 35 |
62.0 x 62.0 |
Page 6 |
fbga |
NP352-87-*-* AC-27191 |
696 |
30 x 30 |
31 x 31 |
47.0 x 47.0 |
Page 5 |
fbga |
NP352-724-95 |
724 |
34 x 34 |
35 x 35 |
62.0 x 62.0 |
Page 6 |
fbga |
NP352-87-1-1 AC-28845 |
764 |
30 x 30 |
31 x 31 |
47.0 x 47.0 |
Page 5 |
fbga |
NP352-76814 |
768 |
38 x 38 |
40 x 40 |
62.0 x 62.0 |
Page 7 |
fbga |
NP352-78832 |
788 |
38 x 38 |
40 x 40 |
62.0 x 62.0 |
Page 7 |
fbga |
NP352-152124 AC-25245 |
792 |
39 x 39 |
40 x 40 |
62.0 x 62.0 |
Page 7 |
fbga |
NP352-829-50 |
829 |
39 x 39 |
40 x 40 |
62.0 x 62.0 |
Page 7 |
fbga |
NP352-83615 |
836 |
31 x 31 |
33 x 33 |
62.0 x 62.0 |
Page 5 |
fbga |
NP352-1008-39 |
1008 |
43 x 43 |
45 x 45 |
74.0 x 74.0 |
Page 8 |
fbga |
NP352-106426-* |
1064 |
43 x 43 |
45 x 45 |
74.0 x 74.0 |
Page 8 |
fbga |
NP352-115523 |
1155 |
34 x 34 |
35 x 35 |
62.0 x 62.0 |
Page 6 |
fbga |
NP352-1206-38 |
1206 |
36 x 36 |
37.5 x 37.5 |
55.8 x 55.8 |
Page 6 |
fbga |
NP352-129636 |
1296 |
36 x 36 |
37.5 x 37.5 |
62.0 x 62.0 |
Page 6 |
fbga |
NP352-1296-52 |
1296 |
36 x 36 |
37.5 x 37.5 |
74.0 x 74.0 |
Page 6 |
fbga |
NP352-152124 |
1521 |
39 x 39 |
40 x 40 |
62.0 x 62.0 |
Page 7 |
fbga |
NP352-1521-53 |
1521 |
39 x 39 |
40 x 40 |
74.0 x 74.0 |
Page 7 |
fbga |
NP352-160018 |
1600 |
41 x 41 |
42.5 x 42.5 |
74.0 x 74.0 |
Page 8 |
fbga |
NP352-1600-54-* |
1600 |
40 x 40 |
45 x 45 |
74.0 x 74.0 |
Page 8 |
fbga |
NP352-1849-35 |
1849 |
43 x 43 |
45 x 45 |
74.0 x 74.0 |
Page 8 |
fbga |
NP352-2116-71 |
2116 |
46 x 46 |
47.5 x 47.5 |
74.0 x 74.0 |
Page 8 |
fbga |
|
|
|
