QFP封装测试座和老化插座 |
||||||||||
---|---|---|---|---|---|---|---|---|---|---|
关键词:QFP、QFP老化座、QFP测试座、QFP插座、 | ||||||||||
|
型号 | 脚数 | 间距 | 厂家 | 脚位图下载 |

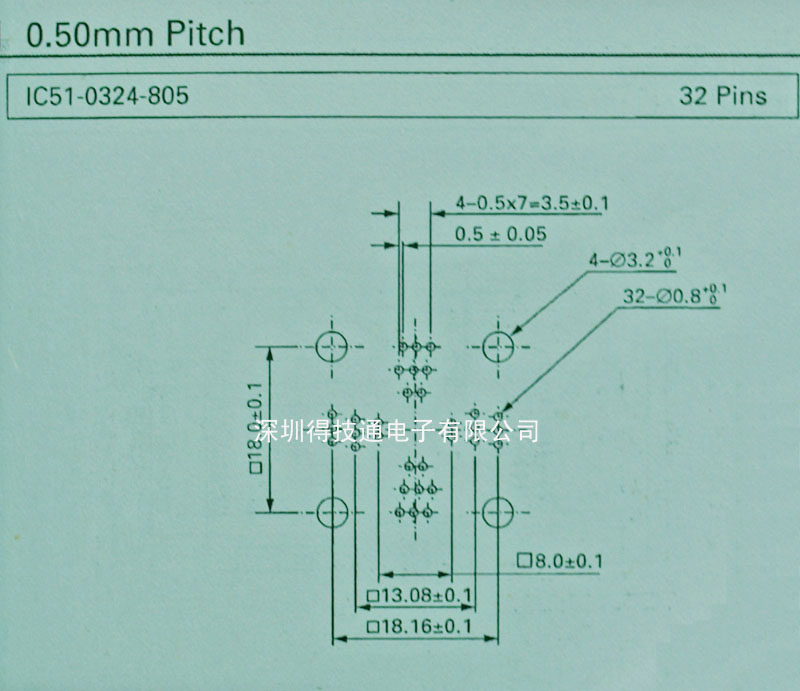

IC51-0324-805 | 32 | 0.5 | YAMAICHI | 点此查看脚位图 |

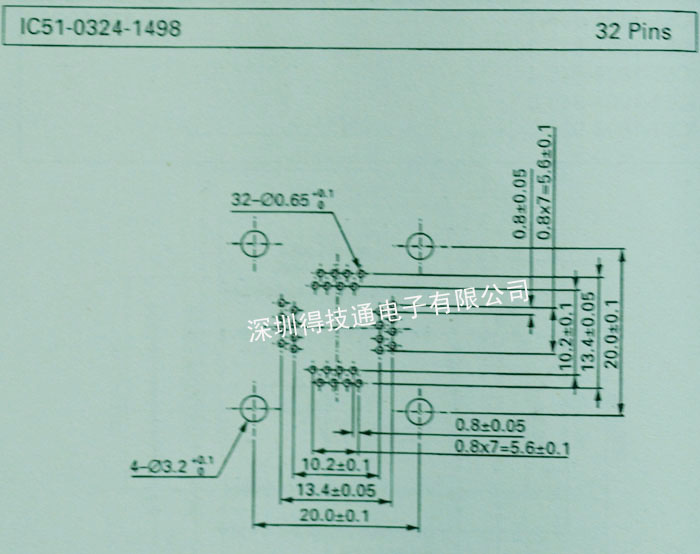

IC51-0324-1498 | 32 | 0.8 | YAMAICHI | 点此查看脚位图 |
IC51-0324-354 | 32 | 0.8 | YAMAICHI | 点此查看脚位图 |

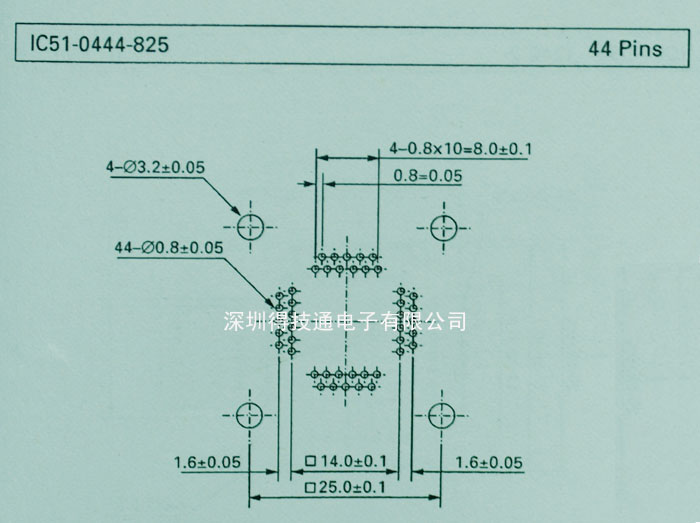

IC51-0444-825 | 44 | 0.8 | YAMAICHI | 点此查看脚位图 |

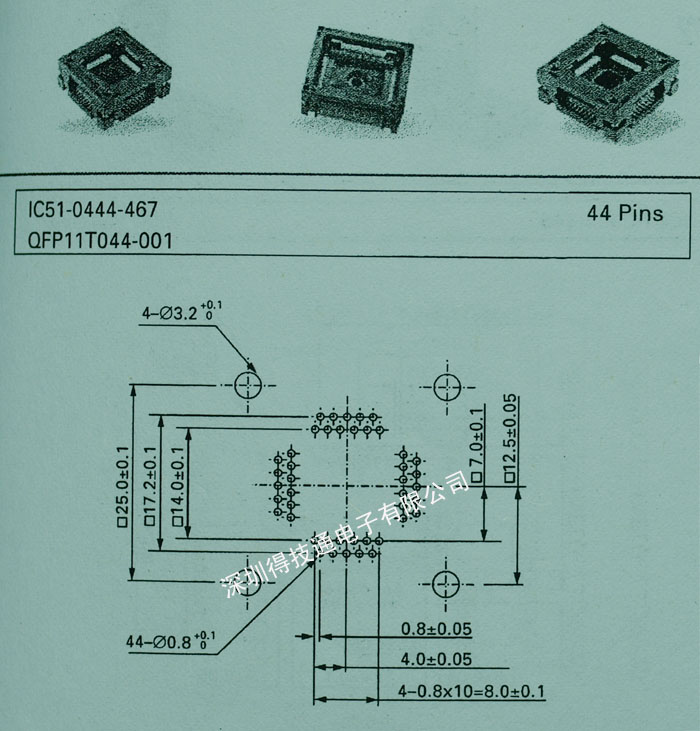

IC51-0444-467 | 44 | 0.8 | YAMAICHI | 点此查看脚位图 |

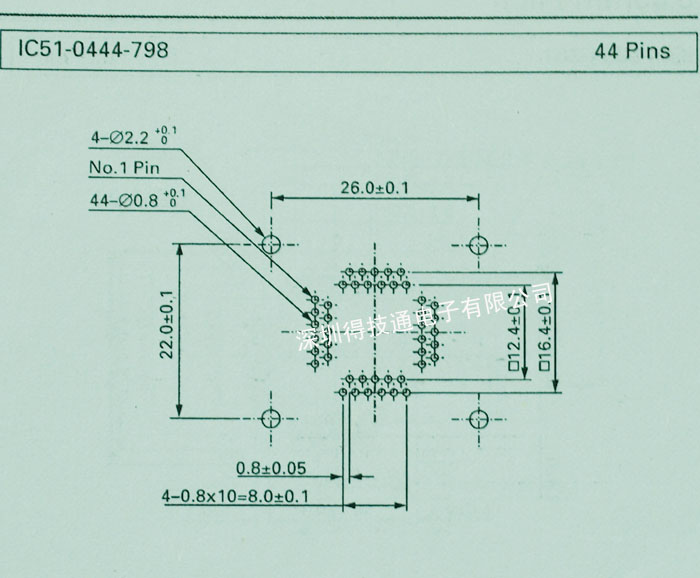

IC51-0444-798 | 44 | 0.8 | YAMAICHI | 点此查看脚位图 |
QFP11T044-001 | 44 | 0.8 | YAMAICHI | 点此查看脚位图 |

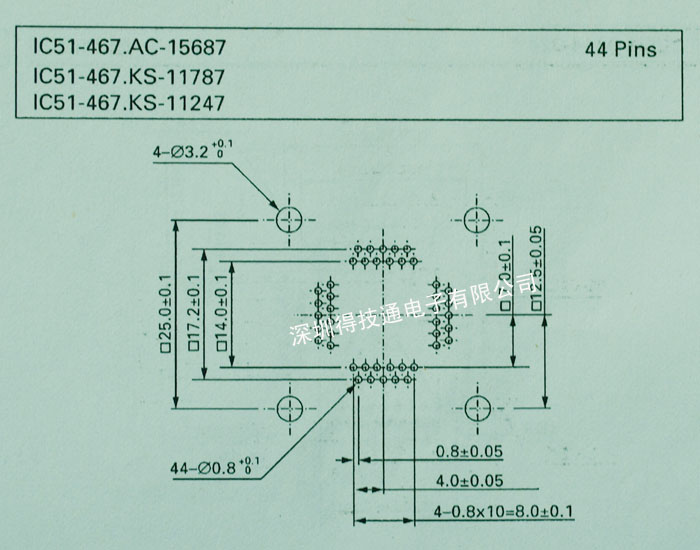

IC51-467.AC-15687 | 44 | 0.8 | YAMAICHI | 点此查看脚位图 |
IC51-467.KS-11787 | 44 | 0.8 | YAMAICHI | 点此查看脚位图 |
IC51-467.KS-11247 | 44 | 0.8 | YAMAICHI | 点此查看脚位图 |

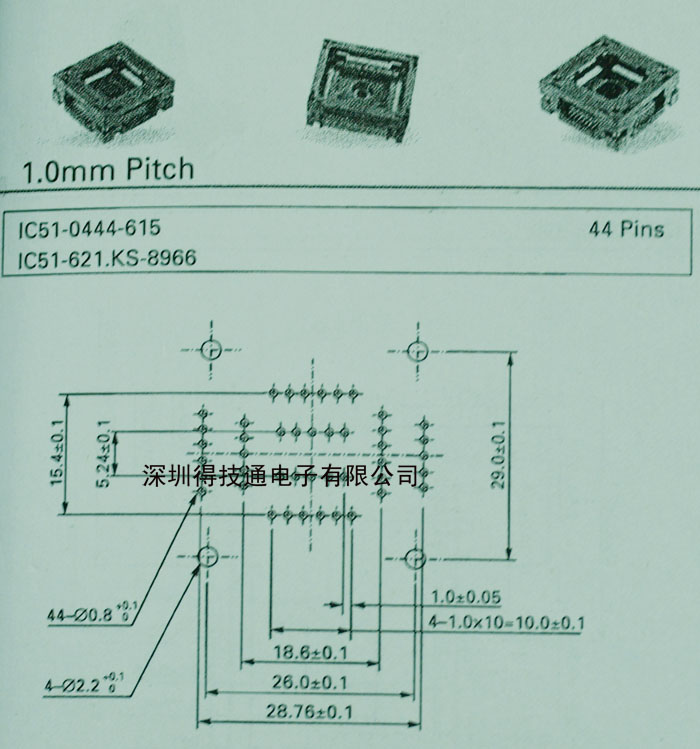

IC51-0444-615 | 44 | 1 | YAMAICHI | 点此查看脚位图 |
IC51-621.KS-8966 | 44 | 1 | YAMAICHI | 点此查看脚位图 |
IC51-0484-806 | 48 | 0.5 | YAMAICHI | 点此查看脚位图 |

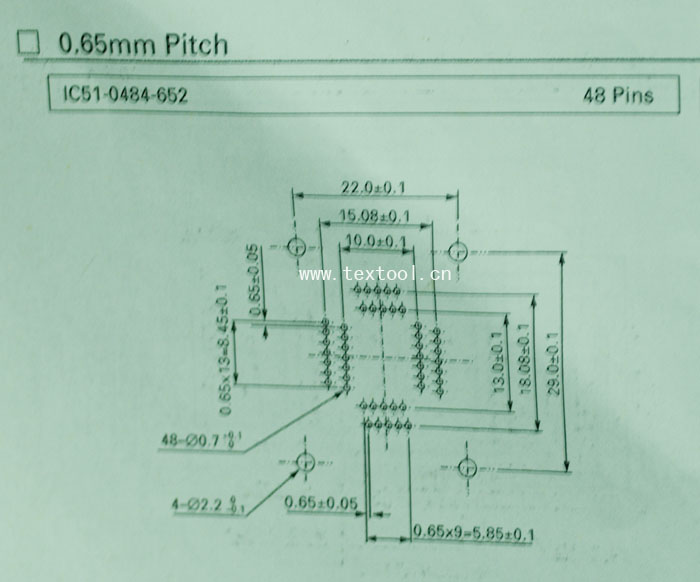

IC51-0484-652 | 48 | 0.65 | YAMAICHI | 点此查看脚位图 |
IC51-0484-801 | 48 | 0.8 | YAMAICHI | 点此查看脚位图 |

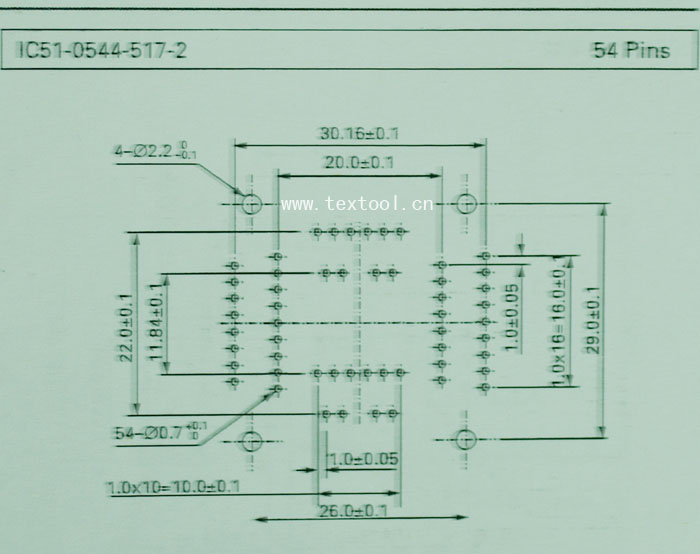

IC51-0544-517-2 | 54 | 1 | YAMAICHI | 点此查看脚位图 |
IC51-0564-680 | 56 | 0.65 | YAMAICHI | 点此查看脚位图 |
IC51-0564-924 | 56 | 0.8 | YAMAICHI | 点此查看脚位图 |
IC51-0564-790 | 56 | 1 | YAMAICHI | 点此查看脚位图 |

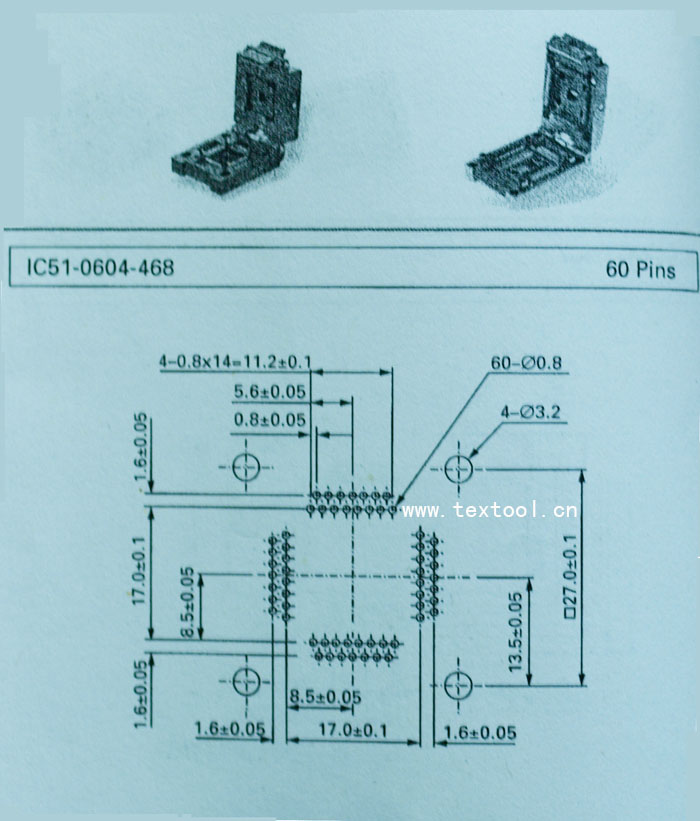

IC51-0604-468 | 60 | 0.8 | YAMAICHI | 点此查看脚位图 |
IC51-0604-361 | 60 | 0.8 | YAMAICHI | 点此查看脚位图 |
IC51-0604-497-2 | 60 | 1 | YAMAICHI | 点此查看脚位图 |

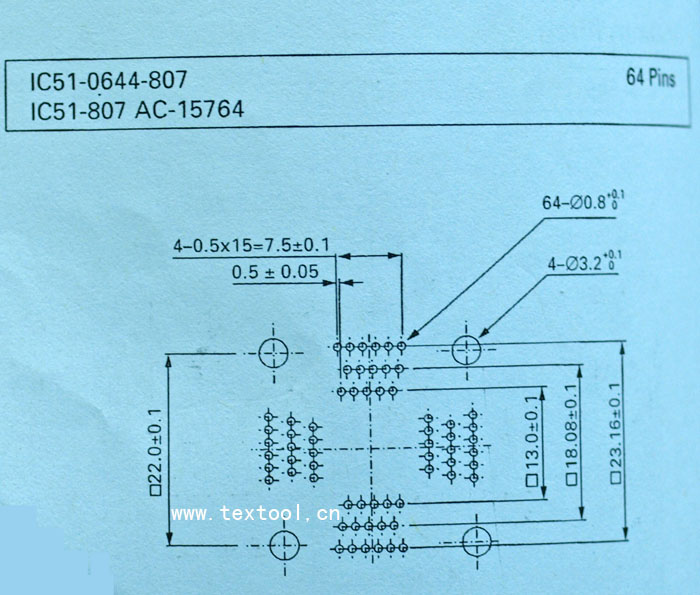

IC51-0644-807 | 64 | 0.5 | YAMAICHI | 点此查看脚位图 |

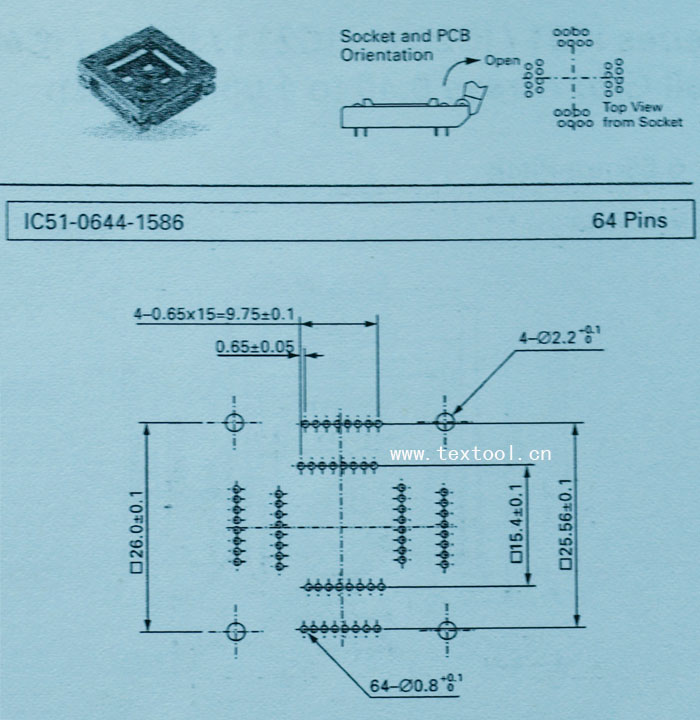

IC51-0644-1586 | 64 | 0.65 | YAMAICHI | 点此查看脚位图 |
IC51-0644-1602 | 64 | 0.65 | YAMAICHI | 点此查看脚位图 |
IC51-0644-692-* | 64 | 0.8 | YAMAICHI | 点此查看脚位图 |
IC51-0644-824-3 | 64 | 0.8 | YAMAICHI | 点此查看脚位图 |

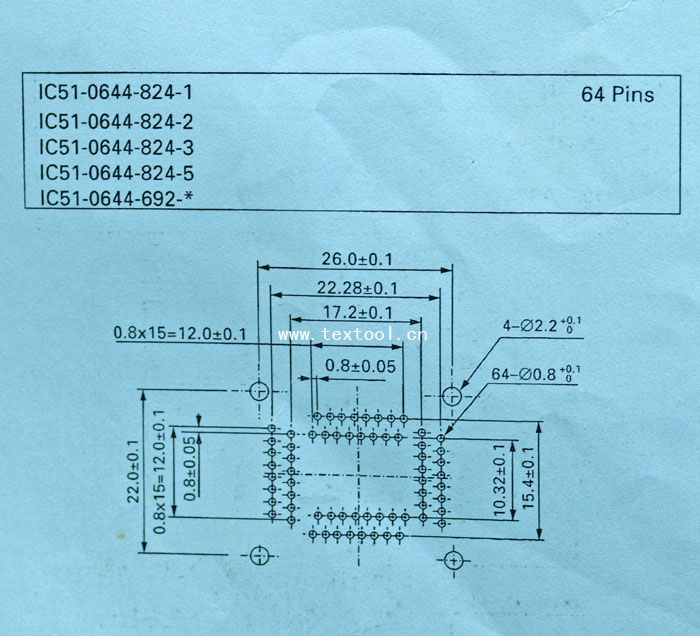

IC51-0644-824-1 | 64 | 0.8 | YAMAICHI | 点此查看脚位图 |
IC51-0644-824-2 | 64 | 0.8 | YAMAICHI | 点此查看脚位图 |
IC51-0644-820-3 | 64 | 1 | YAMAICHI | 点此查看脚位图 |
IC51-0644-820-1 | 64 | 1 | YAMAICHI | 点此查看脚位图 |
IC51-820-2.KS-9367 | 64 | 1 | YAMAICHI | 点此查看脚位图 |
IC51-0644-820-2 | 64 | 1 | YAMAICHI | 点此查看脚位图 |

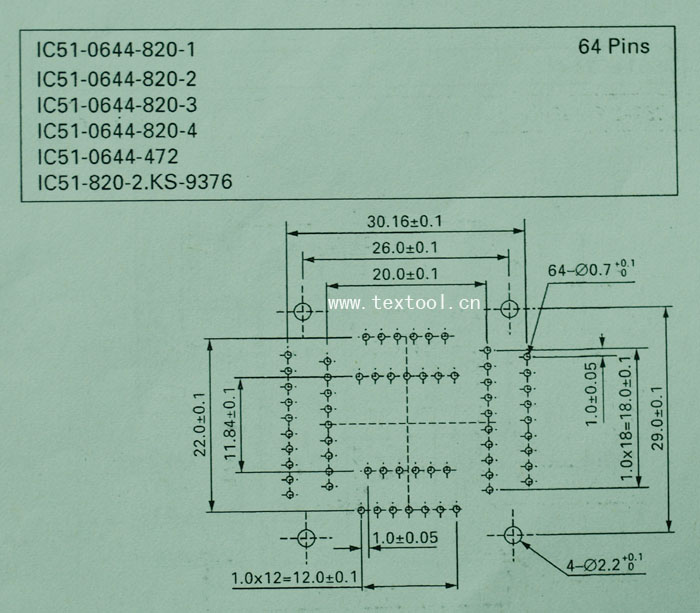

IC51-0644-820-4 | 64 | 1 | YAMAICHI | 点此查看脚位图 |
IC51-0644-472 | 64 | 1 | YAMAICHI | 点此查看脚位图 |
IC51-0684-734 | 68 | 0.65 | YAMAICHI | 点此查看脚位图 |

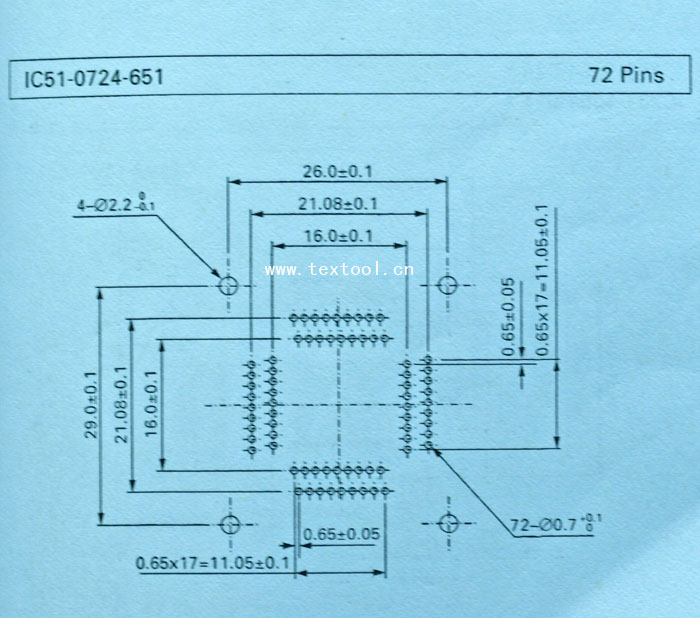

IC51-0724-651 | 72 | 0.65 | YAMAICHI | 点此查看脚位图 |

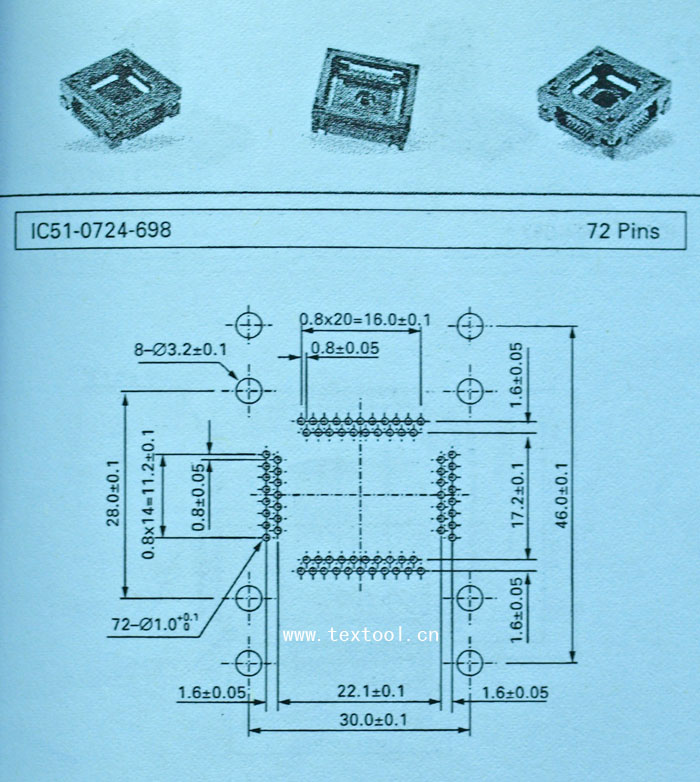

IC51-0724-698 | 72 | 0.8 | YAMAICHI | 点此查看脚位图 |

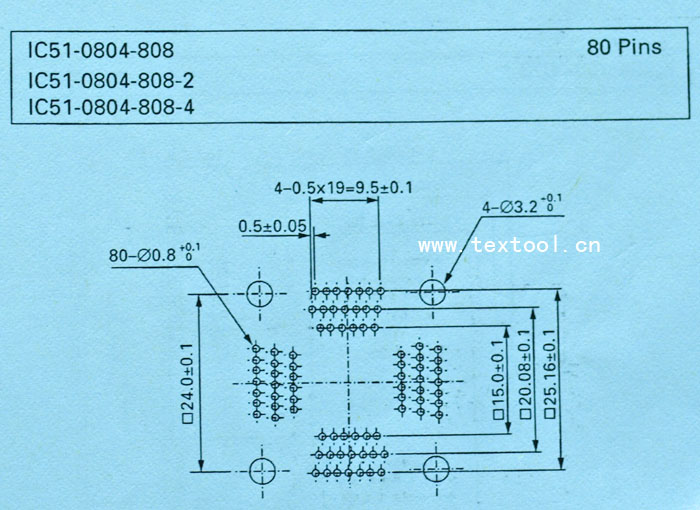

IC51-0804-808 | 80 | 0.5 | YAMAICHI | 点此查看脚位图 |

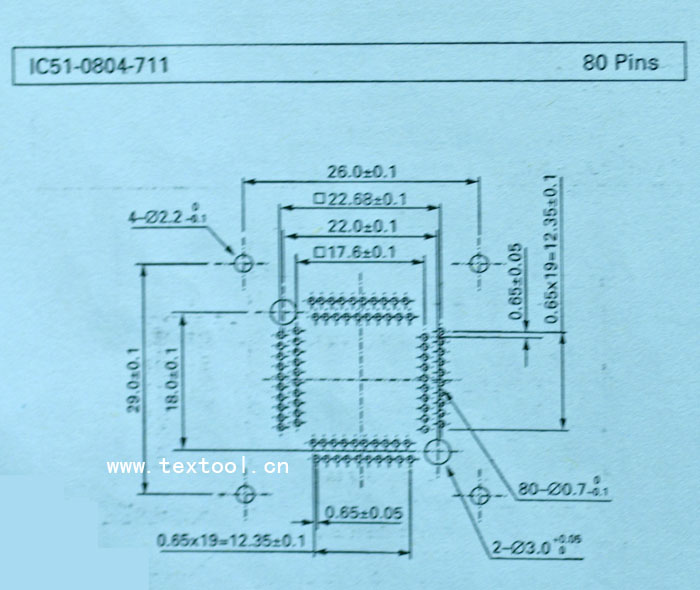

IC51-0804-711 | 80 | 0.65 | YAMAICHI | 点此查看脚位图 |

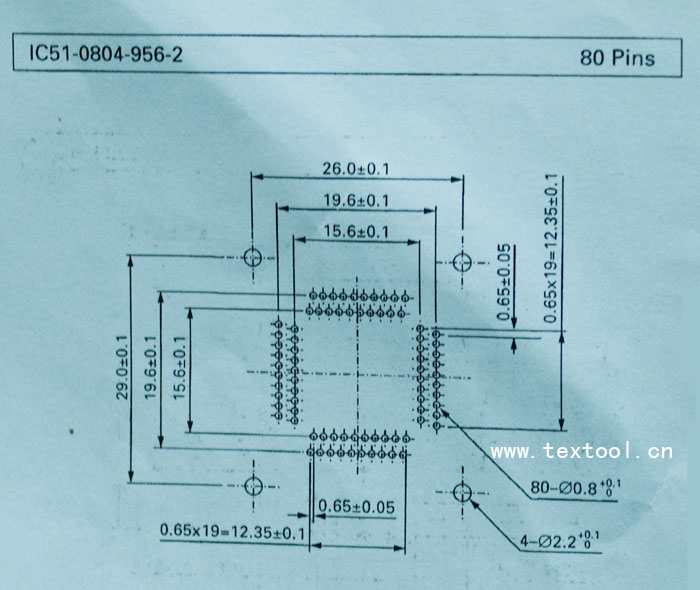

IC51-0804-956-2 | 80 | 0.65 | YAMAICHI | 点此查看脚位图 |

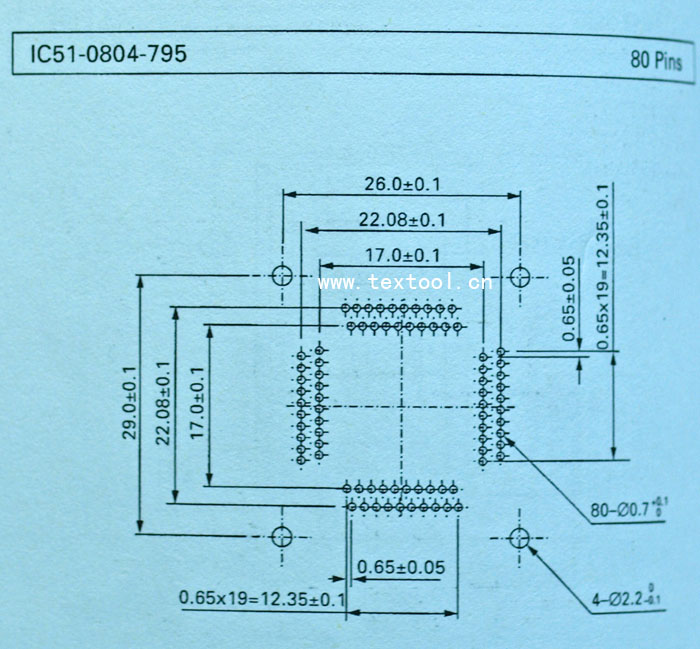

IC51-0804-795 | 80 | 0.65 | YAMAICHI | 点此查看脚位图 |

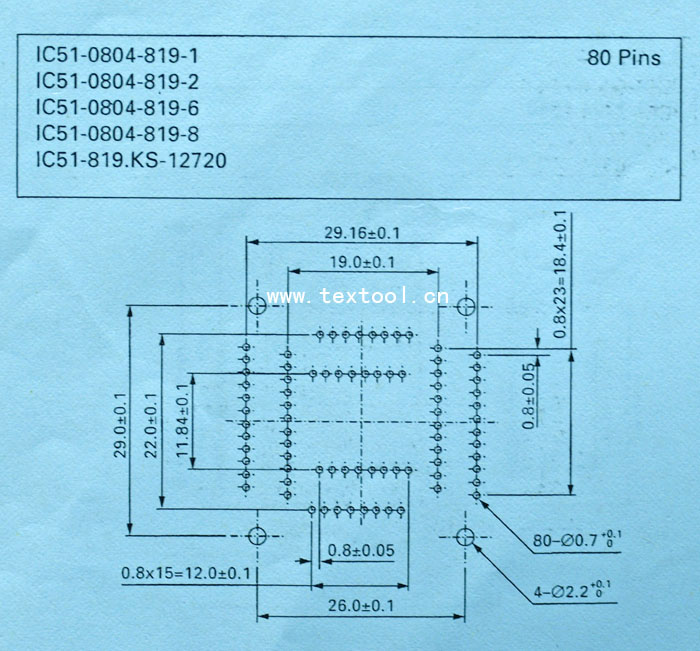

IC51-0804-819-1 | 80 | 0.8 | YAMAICHI | 点此查看脚位图 |
IC51-0804-819-8 | 80 | 0.8 | YAMAICHI | 点此查看脚位图 |
IC51-0804-819-2 | 80 | 0.8 | YAMAICHI | 点此查看脚位图 |
IC51-0804-819-6 | 80 | 0.8 | YAMAICHI | 点此查看脚位图 |
IC51-819.KS-12720 | 80 | 0.8 | YAMAICHI | 点此查看脚位图 |
IC51-1004-809 | 100 | 0.5 | YAMAICHI | 点此查看脚位图 |
IC51-1004-395 | 100 | 0.65 | YAMAICHI | 点此查看脚位图 |
IC51-1004-814-6 | 100 | 0.65 | YAMAICHI | 点此查看脚位图 |
IC51-1004-814-1 | 100 | 0.65 | YAMAICHI | 点此查看脚位图 |
IC51-1004-814-2 | 100 | 0.65 | YAMAICHI | 点此查看脚位图 |
IC51-1004-814-13 | 100 | 0.65 | YAMAICHI | 点此查看脚位图 |
IC51-814.KS-12033 | 100 | 0.65 | YAMAICHI | 点此查看脚位图 |
IC51-1004-567 | 100 | 0.8 | YAMAICHI | 点此查看脚位图 |

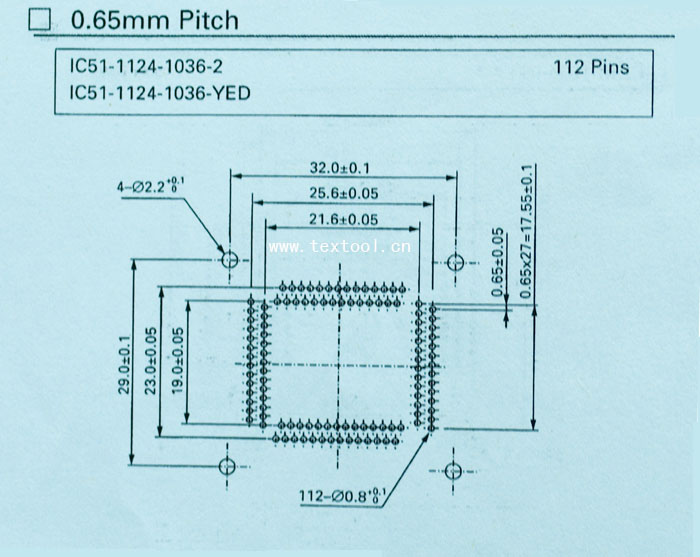

IC51-1124-1036-2 | 112 | 0.65 | YAMAICHI | 点此查看脚位图 |
IC51-1124-1036-YED | 112 | 0.65 | YAMAICHI | 点此查看脚位图 |
IC51-1204-1812 | 120 | 0.4 | YAMAICHI | 点此查看脚位图 |

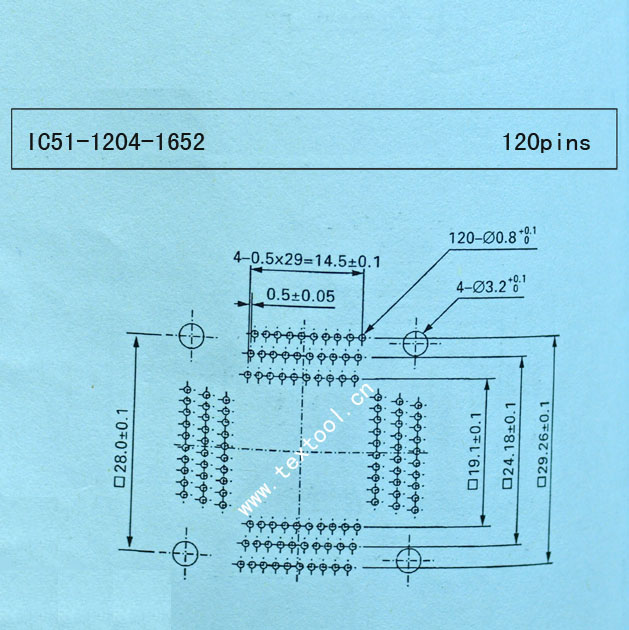

IC51-1204-1652 | 120 | 0.5 | YAMAICHI | 点此查看脚位图 |

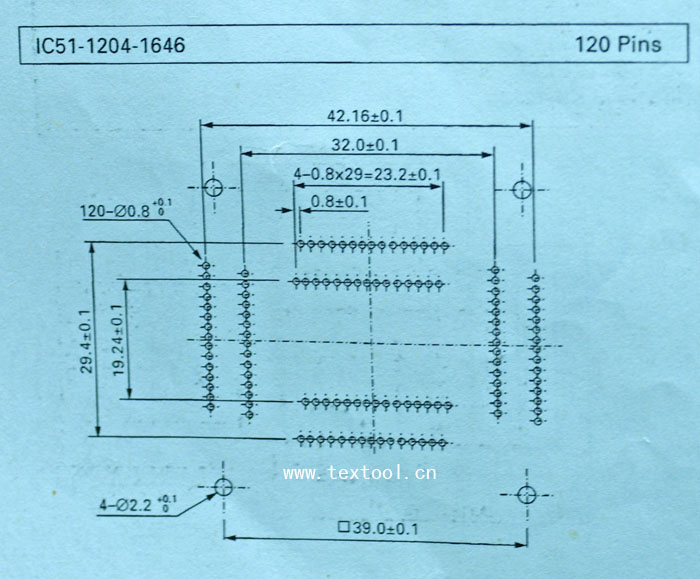

IC51-1204-1646 | 120 | 0.8 | YAMAICHI | 点此查看脚位图 |

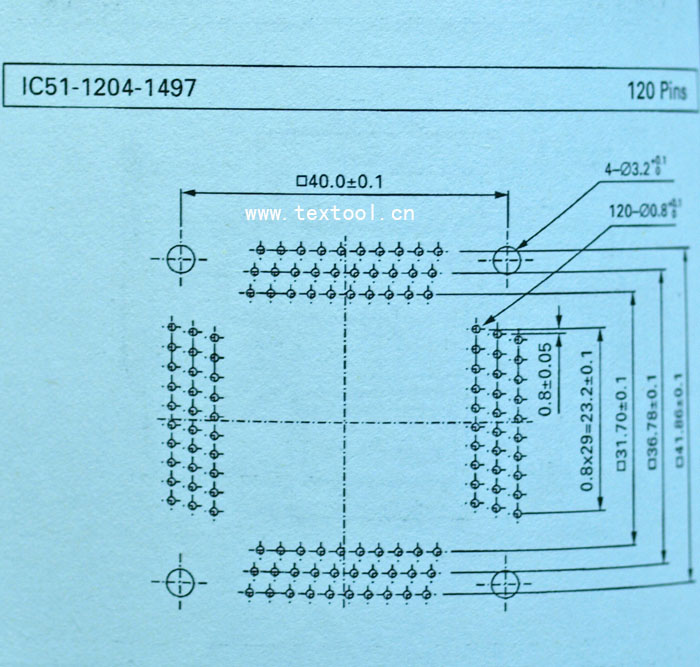

IC51-1204-1497 | 120 | 0.8 | YAMAICHI | 点此查看脚位图 |
IC51-1497.KS-11444 | 120 | 0.8 | YAMAICHI | 点此查看脚位图 |

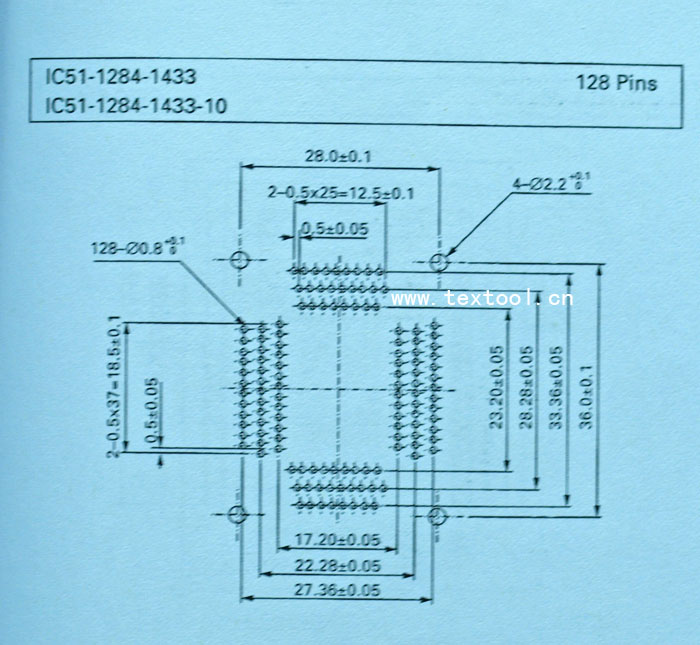

IC51-1284-1433 | 128 | 0.5 | YAMAICHI | 点此查看脚位图 |
IC51-1284-1433-10 | 128 | 0.5 | YAMAICHI | 点此查看脚位图 |

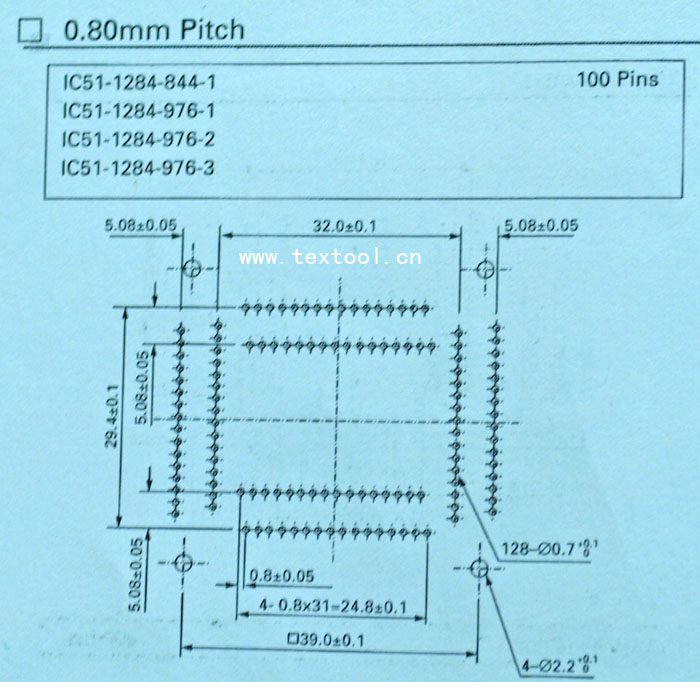

IC51-1284-844-1 | 128 | 0.8 | YAMAICHI | 点此查看脚位图 |
IC51-1284-976-1 | 128 | 0.8 | YAMAICHI | 点此查看脚位图 |
IC51-1284-976-2 | 128 | 0.8 | YAMAICHI | 点此查看脚位图 |
IC51-1444-1354 | 144 | 0.5 | YAMAICHI | 点此查看脚位图 |
IC51-1444-1354-7 | 144 | 0.5 | YAMAICHI | 点此查看脚位图 |
IC51-1354.KS-11590 | 144 | 0.5 | YAMAICHI | 点此查看脚位图 |
IC51-1444-1014 | 144 | 0.65 | YAMAICHI | 点此查看脚位图 |
IC51-1444-1014-3 | 144 | 065 | YAMAICHI | 点此查看脚位图 |
IC51-1014.KS-11137 | 144 | 0.65 | YAMAICHI | 点此查看脚位图 |
IC51-1604-1350 | 160 | 0.5 | YAMAICHI | 点此查看脚位图 |

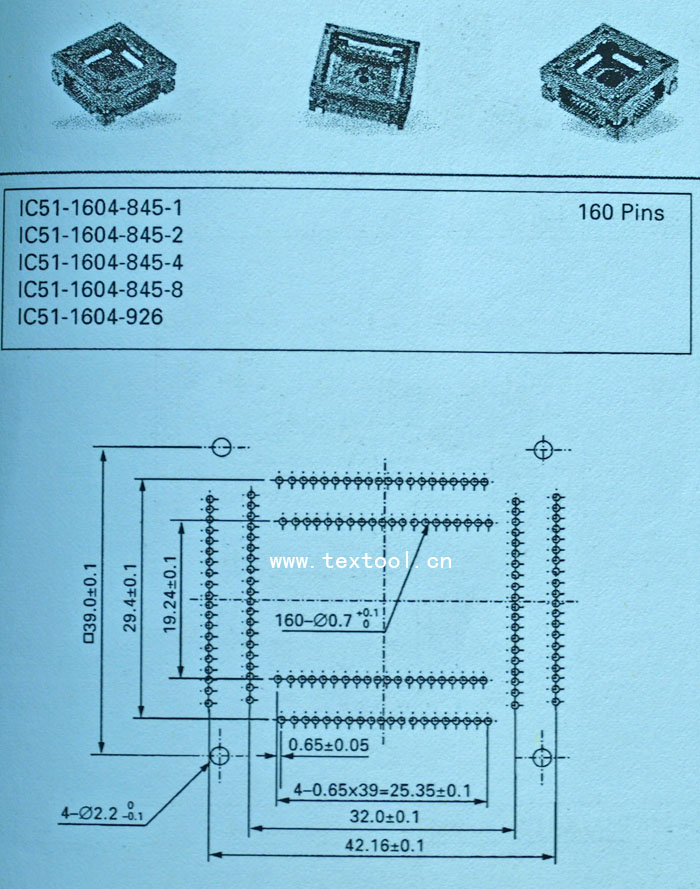

IC51-1604-845-1 | 160 | 0.65 | YAMAICHI | 点此查看脚位图 |
IC51-1604-845-2 | 160 | 0.65 | YAMAICHI | 点此查看脚位图 |
IC51-1604-845-4 | 160 | 0.65 | YAMAICHI | 点此查看脚位图 |
IC51-1604-926 | 160 | 0.65 | YAMAICHI | 点此查看脚位图 |

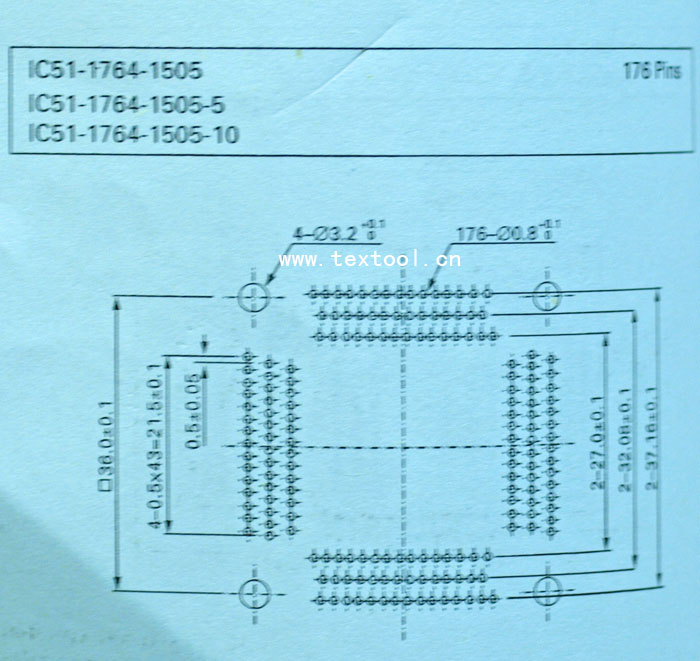

IC51-1764-1505 | 176 | 0.5 | YAMAICHI | 点此查看脚位图 |
IC51-1764-1505-5 | 176 | 0.5 | YAMAICHI | 点此查看脚位图 |
IC51-1844-1148-1 | 180 | 0.65 | YAMAICHI | 点此查看脚位图 |
IC51-1844-1541 | 180 | 0.65 | YAMAICHI | 点此查看脚位图 |

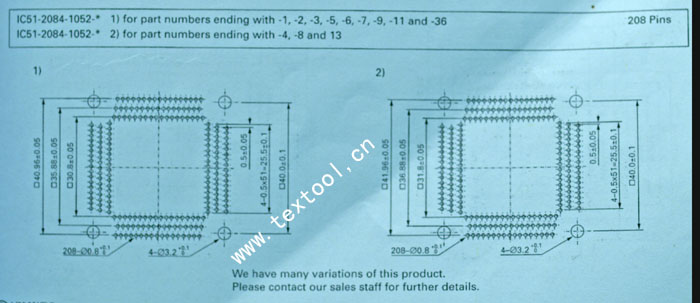

IC51-2084-1052-* | 208 | 0.5 | YAMAICHI | 点此查看脚位图 |
IC51-2084-1056 | 208 | 0.5 | YAMAICHI | 点此查看脚位图 |

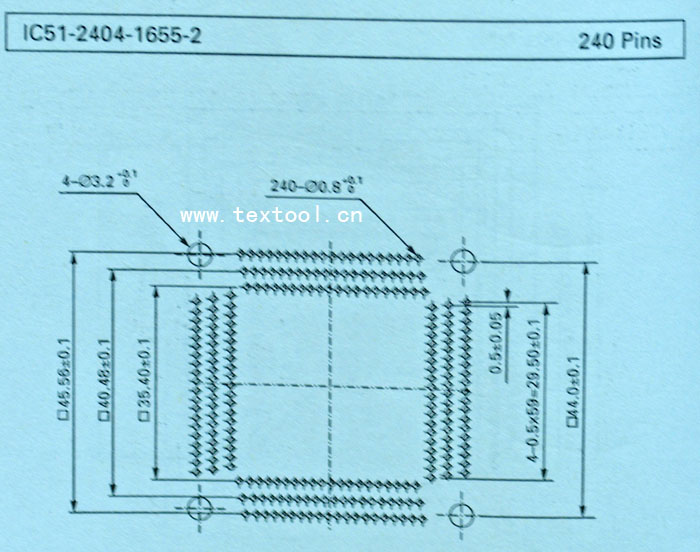

IC51-2404-1655-2 | 240 | 0.5 | YAMAICHI | 点此查看脚位图 |

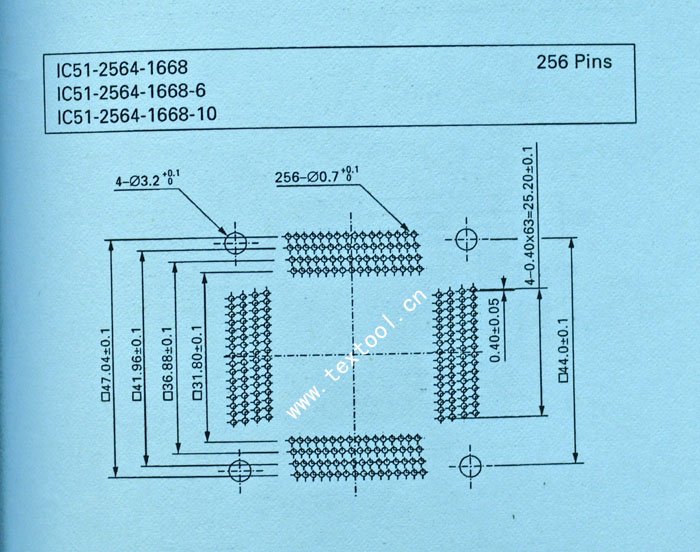

IC51-2564-1668 | 256 | 0.4 | YAMAICHI | 点此查看脚位图 |
IC51-2564-1668-10 | 256 | 0.4 | YAMAICHI | 点此查看脚位图 |
IC51-2724-1727 | 272 | 0.5 | YAMAICHI | 点此查看脚位图 |

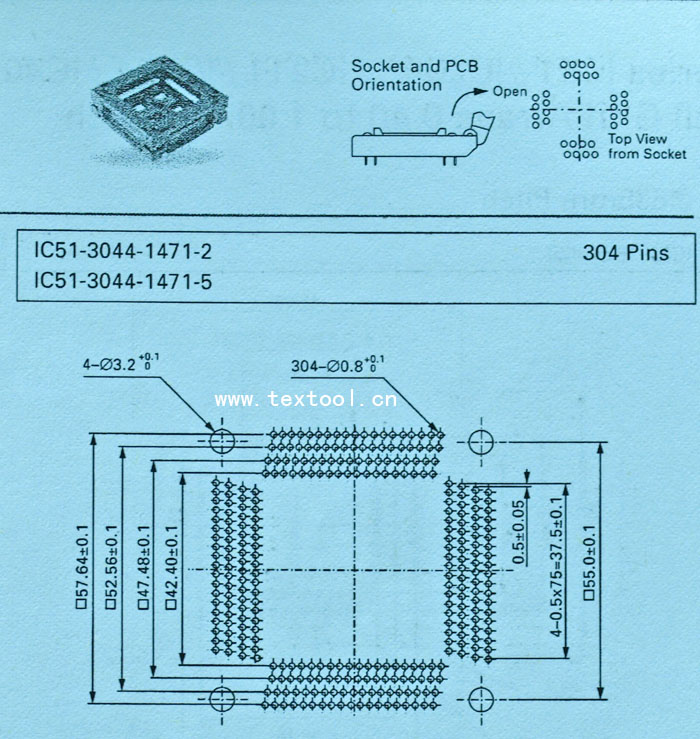

IC51-3044-1471-2 | 304 | 0.5 | YAMAICHI | 点此查看脚位图 |

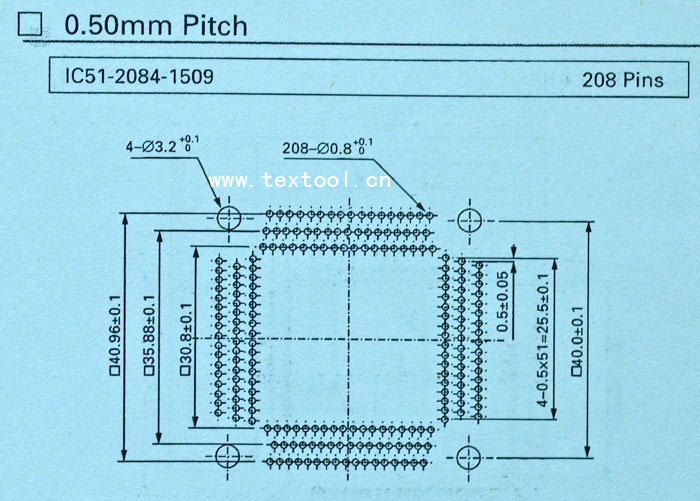

IC51-2084-1509 | 208 | 0.5 | YAMAICHI | 点此查看脚位图 |
IC51-2404-1655-3 | 240 | 0.5 | YAMAICHI | 点此查看脚位图 |
IC51-3044-1471-5 | 304 | 0.5 | YAMAICHI | 点此查看脚位图 |
