PLASTRONICS QFP封装测试座/老化座QFP Test &Burn-in socke
PRODUCT DESCRIPTION:
The worlds only Pressure Mount QFP sockets! Save time and money with maintenance on burn-in boards.
Meets Jedec spec MS-026
Plastronics "R2" Surface Pressure Mount Product Specifications
Contact Element: BeCu
Contact Plating: Gold Plating
Plastic Material: PPS
Metal Components: Stainless Steel
Resistance: < 30 mili ohms
Inductance: average 3 nH
Life Cycle: > 5,000 insertions
PRODUCT SPECIFICATIONS AND DIMENSIONS:
Socket P/N |
# Pins |
Pitch (mm) |
Body Size (mm) |
Dim A |
Dim B |
Dim C |
R2QP100A105 |
100 |
0.50 |
14 x 14 |
40.23 |
40.23 |
13.46 |
R2QP100A107 |
100 |
0.65 |
14 x 20 |
46.23 |
40.23 |
13.46 |
R2QP144A105 |
144 |
0.50 |
20 X 20 |
46.23 |
46.23 |
13.46 |
R2QP164A104 |
164 |
0.40 |
20 X 20 |
46.23 |
46.23 |
13.46 |
R2QP176B104 |
176 |
0.40 |
20 X 20 |
46.23 |
46.23 |
13.46 |
R2QP176A105 |
176 |
0.50 |
24 x 24 |
50.24 |
50.24 |
13.46 |
R2QP208A105 |
208 |
0.50 |
28 x 28 |
54.23 |
54.23 |
13.46 |

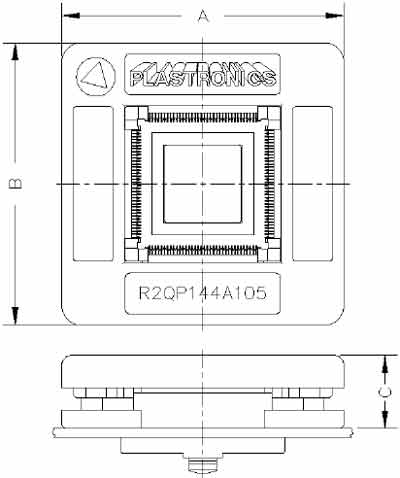

DETAIL DRAWINGS
|
