Series Overview *QFP (Quad Flat Packages, Gullwing Leads)

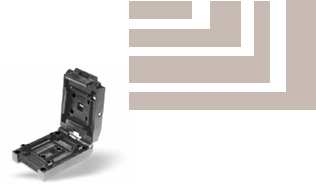

Series IC51 (Clamshell) QFP, PQFP, TQFP and MQUAD®

*QFP variations e.g. BQFP...

0.4mm to 1.27 Pitch

Speci  cations

Part Number (Details)

Insulation Resistance:                   1,000MΩ min. at 100V DC Dielectric Withstanding Voltage:  for 1 minute (socket depended) Contact Resistance:                       30mΩ max. at 10mA/20mV max. Operating Temperature Range:    –40°C to +150°C (for type PEI/PSF)

IC51 Series No.

-  064

4

-  807

–55°C to +170°C (for type PES) –55°C to +170°C (for type PEI) Mating Cycles:                              10,000 insertions min.   Materials and Finish Housing:   Polysulphone (PSF), glass-  lled Polyethersulphone (PES), glass-  lled Polyetherimide (PEI), glass-  lled Contacts:   Beryllium Copper (BeCu) Plating:     Gold over Nickel

No. of Contact Pins   Number of Sides with Contacts   Design Number     As speci  cations for this product differ by pitch and material-mix, please contact our Sales Department for detailed information.

Series IC51 (Clamshell) Bumper Quad Flat Packages (BQFP)   Speci  cations

0.635mm Pitch     Part Number (Details)

Insulation Resistance:                    1,000MΩ min. at 500V DC Dielectric Withstanding Voltage:   700V AC for 1 minute Contact Resistance:                       30mΩ max. at 10mA/20mV max. Current Rating:                              1A max.

IC51 Series No.

-  100

4

-  827

Operating Temperature Range:     –55°C to +170°C Mating Cycles:                               25,000 insertions min. Contact Force:                               50g to 150g per pin   Materials and Finish Housing:   Polyetherimide (PEI), glass-  lled Contacts:  Beryllium Copper (BeCu) Plating:     Gold over Nickel

No. of Contact Pins   Number of Sides with Contacts   Design Number

Series IC211 (Open Top) Bumper Quad Flat Packages (BQFP)   Speci  cations

0.635mm Pitch     Part Number (Details)

Insulation Resistance:                    1,000MΩ min. at 500V DC Dielectric Withstanding Voltage:   500V AC for 1 minute Contact Resistance:                       30mΩ max. at 10mA/20mV max. Operating Temperature Range:     –40°C to +170°C

IC211 Series No.

-  132

4  -  002   *  -

*

Contact Force:                               20g to 80g per pin Mating Cycles:                               10,000 insertions min.     Materials and Finish Housing:   Polyetherimide (PEI), glass-  lled Contacts:  Beryllium Copper (BeCu) Plating:     Gold over Nickel

No. of Contact Pins   Number of Sides with Contacts   Design Number   Positioning Pin: N = Without Positioning Pin Unmarked = With Positioning Pin

Protection Key* * K = With Protection Key Unmarked = Without Protection Key

.. Test & Burn-In

**Protection Key: Prevents IC from releasing during transportation   SPECIFICATIONS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE   –   DIMENSIONS IN MILLIMETER
