PLASTRONICS SO封装测试座/老化座SO Test &Burn-in socket
- Accepts a variety of lead lengths
- True Zero Insertion Force (ZIF) Socket
- Design simplicity
- Optimal airflow during burn-in
- Automated or manual loading
- Timely delivery
- Device probing and testing through open top design
- Trapped contacts
- Compact size
MATERIAL SPECIFICATIONS:
Contacts
Material: S.S., Full Hard
Plating: 30 uin over 100 uin Nickel [Gold Option]
Temperature Rating: 290
Solder Tail Section: 0.64 [0.025] x 0.20 [0.008]
Solder Tail Length: 3.25 [0.128]
Plastic Parts
Material: 40% Glass-Filled PPS
Temperature Rating: 175 Continuous
Insulation Resistance: 1x1013 Ohms / Mil
Coil Springs
Material: Passivated S.S.
Temperature Rating: 290 Continuous
Rivets
Material: Brass, Nickel Plated
Temperature Rating: 175 Continuous
Normal Force
Range To Be Expected: 50 Grams / Contact
Life Cycling
Life To Be Expected: 25,000 Cycles
Cap Compression
Depends on Pin Count (Available By Request)
Electrical Tests
Resistance > 30 MilliOhms @ 10 mA
RODUCT SPECIFICATIONS AND DIMENSIONS:
Socket Dimensions (in) |
|||||||||
Part # |
Pins |
In. |
mm. |
Dim A |
Dim B |
Dim C |
Dim D |
Dim E |
Dim F |
P2718SO-16A |
8 |
0.050 |
1.27 |
0.150 |
0.200 |
0.069 |
0.680 |
0.800 |
0.695 |
P2714SO |
14 |
0.050 |
1.27 |
0.150 |
0.340 |
0.069 |
0.680 |
0.800 |
0.695 |
P2716SO |
16 |
0.050 |
1.27 |
0.300 |
0.400 |
0.104 |
0.850 |
1.000 |
0.725 |
P2718SO |
18 |
0.050 |
1.27 |
0.150 |
0.350 |
0.069 |
0.680 |
0.800 |
0.695 |
P2718SO |
18 |
0.050 |
1.27 |
0.150 |
0.400 |
0.069 |
0.680 |
0.800 |
0.695 |
P2720SOL |
20 |
0.050 |
1.27 |
0.300 |
0.510 |
0.104 |
0.850 |
1.000 |
0.725 |
P2720SOW |
20 |
0.050 |
1.27 |
0.350 |
0.510 |
0.104 |
0.850 |
1.000 |
0.725 |
P2720TP |
20 |
0.050 |
1.27 |
0.300 |
0.675 |
0.050 |
0.850 |
1.000 |
0.650 |
P2724SO |
24 |
0.050 |
1.27 |
0.300 |
0.610 |
0.104 |
0.850 |
1.000 |
0.725 |
P2726TP |
26 |
0.050 |
1.27 |
0.300 |
6.750 |
0.050 |
0.850 |
1.000 |
0.650 |
P2728SO |
28 |
0.050 |
1.27 |
0.300 |
0.710 |
0.104 |
0.850 |
1.000 |
0.725 |
P2828SO |
28 |
0.050 |
1.27 |
0.350 |
0.710 |
0.104 |
0.850 |
1.000 |
0.725 |
P2232SOL |
32 |
0.050 |
1.27 |
0.400 |
0.806 |
0.100 |
0.940 |
0.940 |
0.725 |
P2232SOW |
32 |
0.050 |
1.27 |
0.450 |
0.806 |
0.100 |
0.940 |
0.940 |
0.725 |

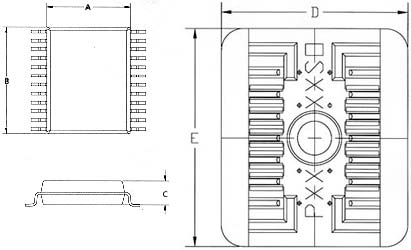

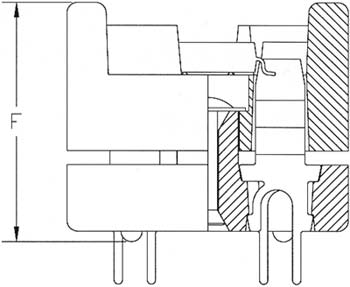

DETAIL DRAWINGS
 |
|
