PLASTRONICS LGA封装测试座/老化座LGA Test &Burn-in socke

Land Grid Array (LGA)Sockets

  • PRODUCT FEATURES:
  • Automated or manual loading
  • Timely delivery
  • Cost-effective tooling for custom packages
  • Surface mountable sockets are also available

MATERIAL SPECIFICATIONS:

Contacts
Material: S.S.
Plating: 30n / PdNi
Optional: 30n / NiB or 30n / ATemperature Rating: 300
Solder Tail Section: 0.36 mm x 0.13 mm

Plastic Parts
Material: 40% Glass-Filled PPS
Temperature Rating: 175 Continuous Simulation Resistance: 1x1013 Ohms / Mil

Mounting Hardware, Cam Handle, Spring
Material: S.S.
Spring Rate: 4.8 lbs / in [0.086 kg / mm]
Temperature Rating: 300 Continuous

PRODUCT SPECIFICATIONS AND DIMENSIONS:

Surface Mount 31 mm Format Sockets / 1.27 mm Pitch
Socket Dimensions
Pitch
Pin Count
Part Number
Body Size
Matrix
Description
A
B
C
1.27
575
575LG12B131
31 X 31
24 X 24
Surface Mount
57.81
47.45
22.31

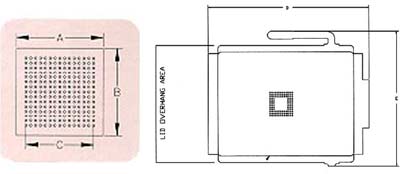

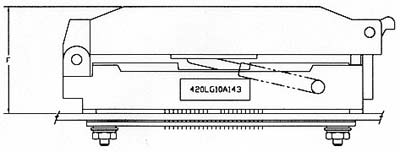

DETAIL DRAWINGS
