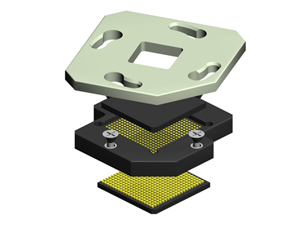

BGA emulation adapter allows BGA
socket to be inserted.
Over View
The SMT adapter with
solder balls emulate the chip’s BGA footprint and is
easily installed using standard flux and reflow
techniques. The adapters have the same solder ball
types as the IC’s they are emulating. You can
combine the SMT foot with the E-tec “Twist Lock
Socket” or any other socket style The corresponding
male BGA socket, through hole type, is plugged into
the adapter. We offer any pin-out, configuration and
grid size for pitch 0.80mm, 1.00mm and 1.27mm. solderball sockets
Specifications
1 Insulator (Adapter Wafer)
Material: FR4/G10 or equivalent high temp material (RoHS
compliant)
