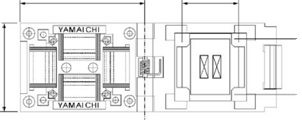

SMT Devices Applicable Dimensions (Quad Flat Packages, Gullwing Leads) Applicable Dimensions Outline IC Body Dimensions C A Outline Open Top Socket Dimensions H Outline Clamshell Socket Dimensions H E E G G E 0.40mm Pitch CL = Clamshell OT = Open Top Part Number Pitch Pin Count Body A x B IC Dimensions Tip-to-Tip C x D Parallel Clamp E 1/2 - IC height F Socket Dimensions G X H IC51-1204-1812 0.4 120 12.0
x 12.0 15.1
x 15.1 36.0
x 42.5 CL IC234-1284-043
* 0.4 128 14.0
x 14.0 16.0
x 16.0 0.562 34.0
x 34.0 OT
IC234-1444-053 * 0.4 144 16.0
x 16.0 18.0
x 18.0 0.537 36.0
x 36.0 OT
IC234-1564-038 * 0.4 156 14.0
x 14.0 16.0
x 16.0
0.67 38.0
x 44.0 OT
IC234-1764-059 * 0.4 176 20.0
x 20.0 22.0
x 22.0
0.67 40.0
x 40.0 OT
IC51-1764-1995 0.4 176 14.0
x 20.0 22.0
x 22.0 21.3 46.0
x 50.0
CL IC51-1764-1995-6 0.4 176 20.0
x 20.0 22.0
x 22.0 21.2 46.0
x 50.0
CL IC234-2164-050 * 0.4 216 20.0
x 20.0 26.0
x 26.0
0.67 44.0
x 44.0 OT
IC234-2164-066-* 0.4 216 20.0
x 20.0 26.0
x 26.0
0.67 44.0
x 44.0 OT
IC234-2564-020 * 0.4 256 28.0
x 28.0 30.0
x 30.0
1.40 48.0
x 48.0 OT
IC234-2564-078 * 0.4 256 28.0
x 28.0 30.0
x 30.0
1.60 48.0
x 48.0 OT
IC51-2564-1668 0.4 256 28.0
x 28.0 31.2
x 31.2 30.0 56.0
x 62.0
CL IC51-2564-1668-10 0.4 256 28.0
x 28.0 30.0
x 30.0 29.4 56.0
x 62.0
CL IC51-2564-1668-6 0.4 256 27.2
x 27.2 29.8
x 29.8 30.0 56.0
x 62.0
CL 0.50mm Pitch IC51-0324-805 0.5 32 5.0
x 5.0 7.0
x 7.0 6.2 28.0
x 31.0 CL IC234-0484-034 * 0.5 48 7.0 x 7.0 9.0 x 9.0 0.47
26.6 x 26.6 OT
IC234-0484-039 * 0.5 48 5.0 x 5.0 9.0 x 9.0 0.7365
26.6 x 26.6 OT
IC51-0484-806 0.5 48 7.0 x 7.0 9.0 x 9.0
8.2
29.0 x 32.0
CL IC51-0484-806-2 0.5 48 7.0 x 7.0 9.0 x 9.0
8.3
29.0x 32.0
CL IC201-0644-003 * 0.5 64 10.0 x 10.0 12.0
x 12.0 0.70
30.0 x36.0 OT
IC201-0644-040 * 0.5 64 10.0 x 10.0 12.0
x 12.0 0.67
28.7 x 28.7 OT
IC234-0644-027 * 0.5 64 10.0 x 10.0 12.0
x 12.0 0.66
29.6 x 29.6 OT
IC51-0644-807 0.5 64 10.0 x 10.0 12.0
x 12.0 11.3
32.0 x 35.0
CL IC51-807 AC-15764 0.5 64 9.95 x 9.95 13.0
x 13.0 12.0
37.0 x 44.0
CL IC201-0804-014 *-* 0.5 80 12.0 x 12.0 14.0
x 14.0 0.62
29.0 x 29.0 OT
IC201-0804-020 *-* 0.5 80 12.0 x 12.0 13.6
x 13.6 0.50
29.0 x 29.0 OT
IC234-0804-011 * 0.5 80 12.0 x 12.0 14.0
x 14.0 0.45
29.0 x 29.0 OT
IC234-0804-026 * 0.5 80 11.95
x 11.95 14.0
x 14.0 0.67
31.6 x 31.6 OT
IC51-0804-808 0.5 80 12.0 x 12.0 14.0
x 14.0 13.3
34.0 x 37.0
CL IC51-0804-808-2 0.5 80 12.0 x 12.0 14.0
x 14.0 13.2
34.0 x 37.0
CL IC51-0804-808-4 0.5 80 12.0 x 12.0 14.0
x 14.0 13.4
34.0 x 37.0
CL IC201-1004-008 *-* 0.5 100 14.0 x 14.0 16.0
x 16.0 0.66
32.2 x 31.0 OT
IC201-1004-043 * 0.5 100 14.0 x 14.0 16.0
x 16.0 0.45 31.0
x. 31.0 OT
IC216-1004-001 *-* 0.5 100 14.0 x 20.0 16.0
x 16.0 0.66
34.2 x 34.2 OT
IC234-1004-023 * 0.5 100 14.0 x 14.0 16.0
x 16.0 0.67
33.6 x 33.6 OT IC51-1004-809 0.5 100 14.0
x 14.0 16.0
x 16.0 15.3 39.0
x 39.0 CL 44
Test & Burn-In SPECIFICATIONS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE – DIMENSIONS IN MILLIMETER
